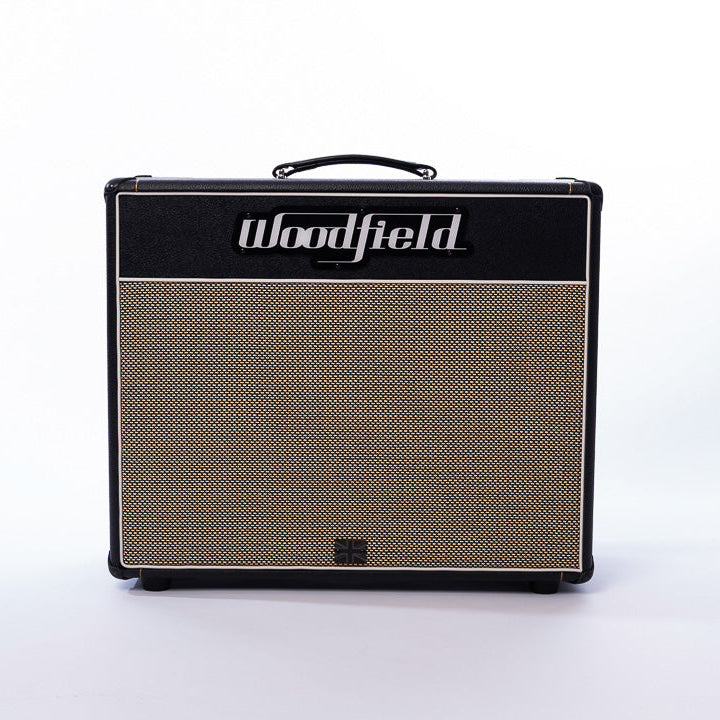

AFON 20 Valve Combo Amplifier

The valve amplifier reinvented - Built for tone purists who demand the best.

Not a replica - a woodfield.

What makes our amplifiers unique?

Modern construction techniques applied in a traditional setting

  • Stringent Faraday caging to prevent any unwanted external electromagnetic interference (especially on a busy stage or studio)
  • High-quality mains IEC inlet/outlet filtering system, complies with IEC/EN 60601-1
  • Silicon Diode Rectification methods for high attack capabilities
  • Solid Busbar and Turret construction for longevity and reliability
  • High quality, modern componentry - minimum 20% over spec for longevity and reliability
  • Quality, robust valve base mountings and retainers for solid installation and reduction in induced microphonics
  • Optimised, bespoke manufactured mains/output transformers for reduced weight and Eddy-Currents/unwanted Tx characteristics
  • Use of highest-grade aviation specification wire and looming techniques throughout the entire build in order to prevent noise induction between looming
  • High-grade laser-cut steel chassis and powder coating for longevity
  • Harma vintage valves, balanced preamp and output pairs

Exceptional build quality

  • Ergonomic, sleek, and robust control knobs and switches
  • Quality leatherwork for handles and corner protection
  • Customisable panelling and quality tolex covering
  • Robust 12mm Latvian Birch ply cabinet

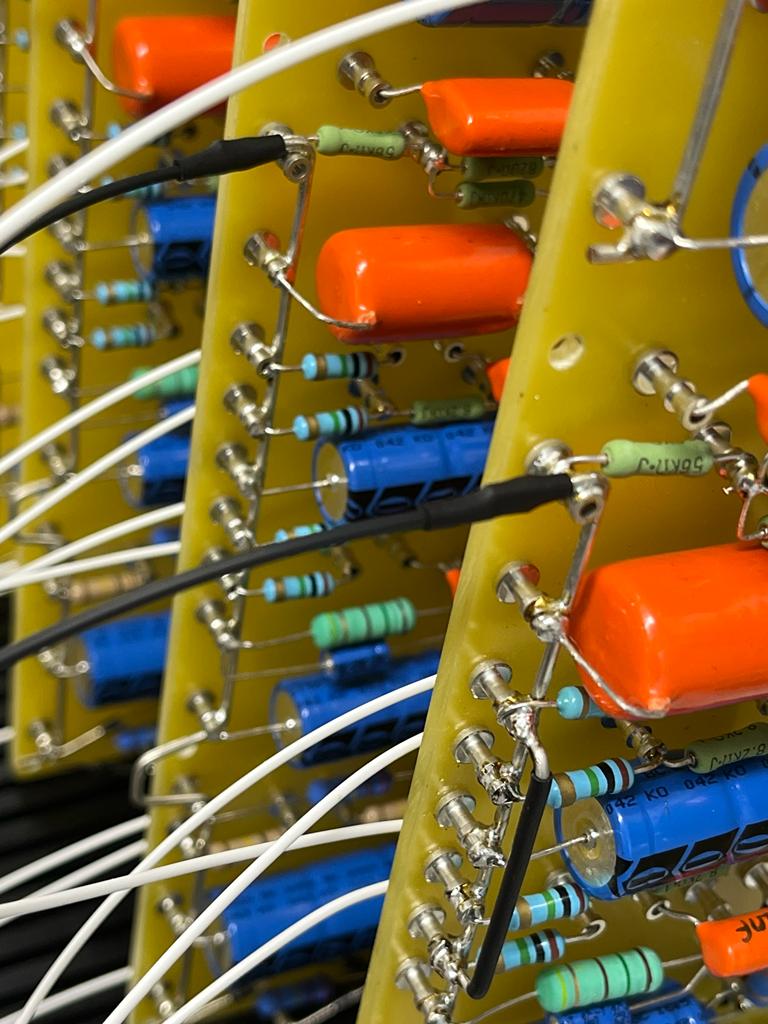

  • Meticulously hand-soldered turret board construction
  • Solid build to prevent any unwanted microphonics or rattles

Extreme versatility

  • Tonally versatile through the use of a Power Selection Variable HT (B+), Master Volume, HI and LO inputs with both Single-Ended and Push-Pull options. These allow for a wide variety of tones at any volume level.
  • Lightweight construction, allows for easy transportation and usage anywhere.

About the AFON 20:

Woodfield takes the timeless magic of valve technology and reimagines it for the modern guitarist. This isn't another clone, reissue or replica - It's a future classic crafted for players who want the soul of analogue with the perfomance capabilities of modern technology.

The AFON 20 is a versatile 20 Watt RMS combo valve amplifier, excelling at either wonderfully clean or crunchy, dirty tones at very low "bedroom volumes"... or as a punchy stage amp when cranked right up. With so many tonal sweet spots to discover, it is the perfect amplifier for the discerning musician.

£3,299.00 - Email for purchase enquiries

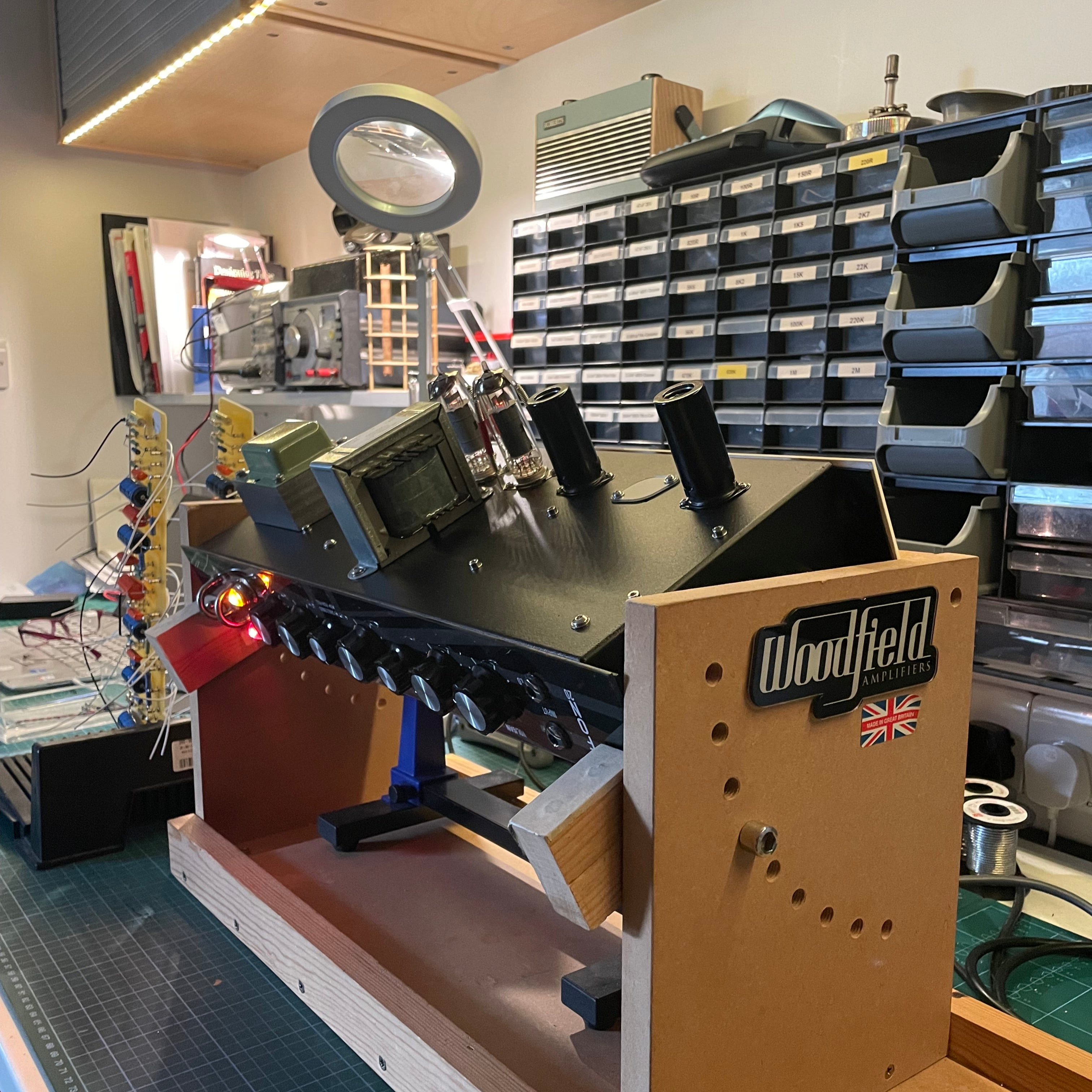

Behind the scenes

AFON20 Specifications:

General Characteristics:

  • 1 x 12 Combo amplifer.
  • Hand-wired Turret board construction.

Preamplifier:

  • Channels: Two Channel HI/LO inputs.

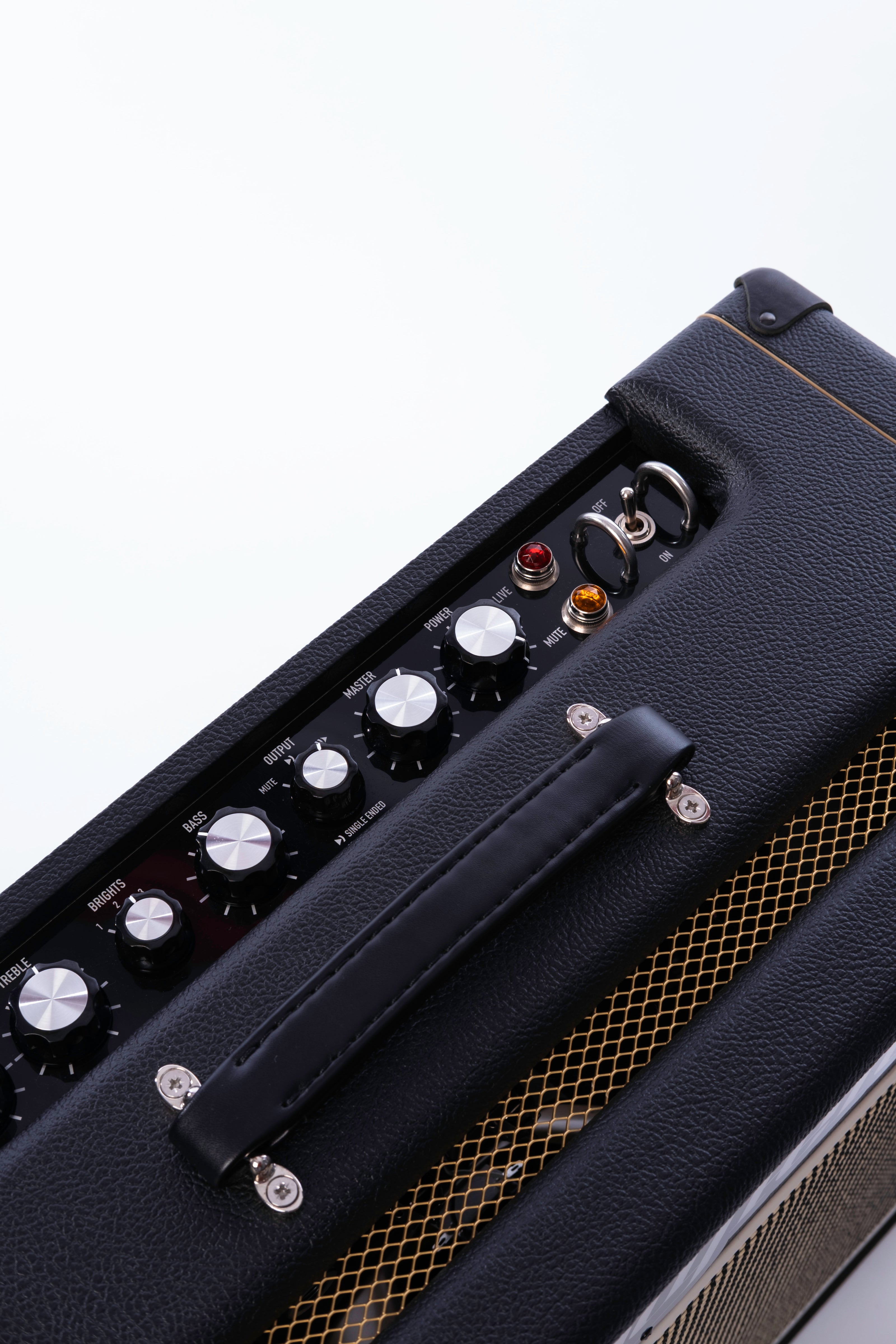

  • Controls: Vol-Gain / Treble / Bass / 3-Pos Brights.
  • Valve Type: 2x Harma ECC83 Fixed Cathode-biased class AB configuration.

Master Volume:

  • Post Phase Inverter configuration.

FX Loop:

  • Pre Phase Inverter configuration. Passive serial loop.

Power Amplifier:

  • Output Power: 20W RMS continuous power handling - peak value of 39.2W.
  • Valve Type: 2x Harma EL84-Retro, balanced pair.
  • Output Options: Selectable - Single Ended, Push Pull, or Mute.
  • Output Impedance: 8 and 16 Ohm speaker outputs.
  • Output Transformer: Bespoke UK manufactured.

Power Supply:

  • Type: Silicon Diode Rectification.
  • Filtering: IEC Inlet/Outlet filtering complying with IEC/EN 60601-1.
  • Power Transformer: Bespoke UK manufactured.
  • Mains Voltage: 240v-50Hz, regional conformance applies.

Power Control:

  • Type: Phase inverter/Power Section Variable HT (B+).
  • Spec: MOSFET HT level control providing 0-20W RMS output.

Speaker:

  • Manufacturer: 12" Celestion G12H Greenback.
  • Spec: 30W, 16 Ohms, 75c/s.

Chassis:

  • Spec: Laser-cut steel with rugged powder coating.

Cabinet:

  • Spec: 12mm Latvian Birch Ply. Bespoke manufactured in the UK by Zilla Cabs.
  • Dimensions: W 60cm x H 50cm x D 25cm.
